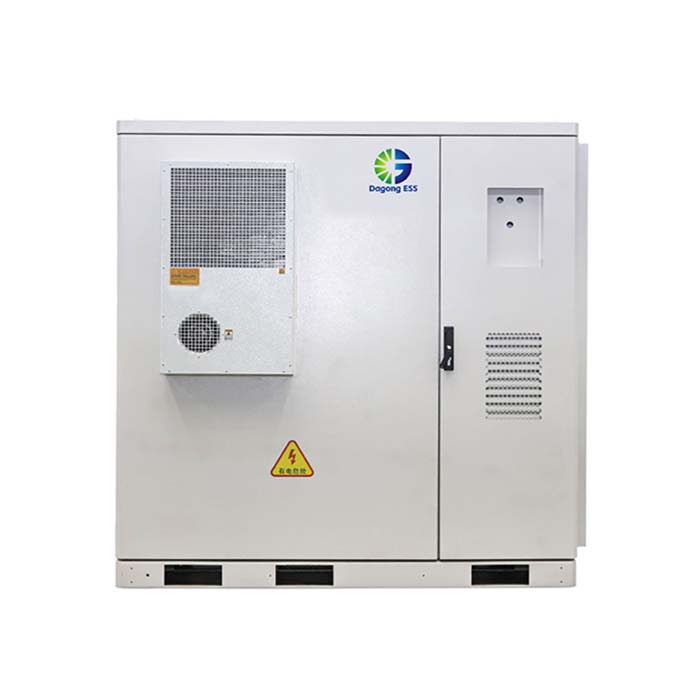

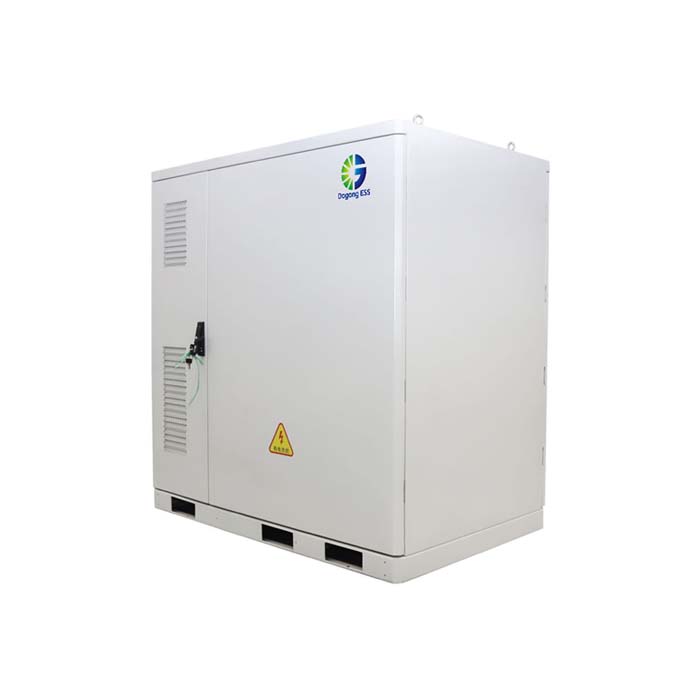

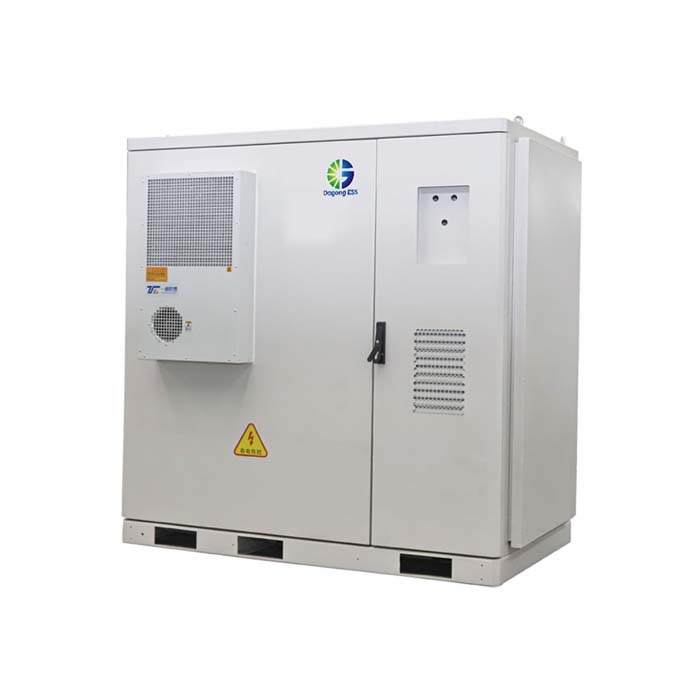

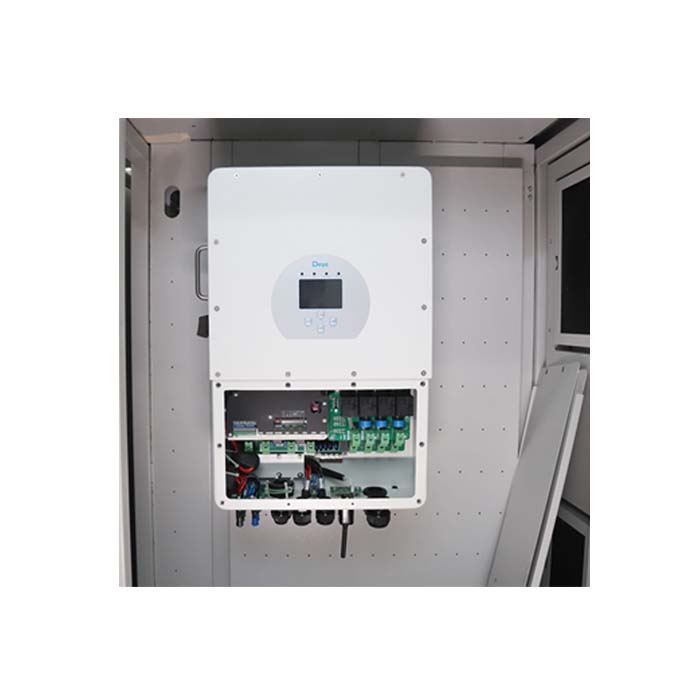

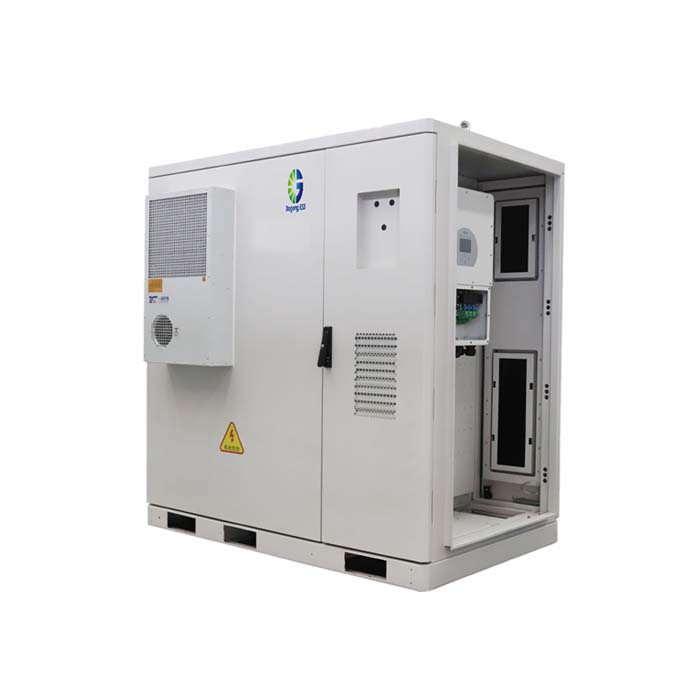

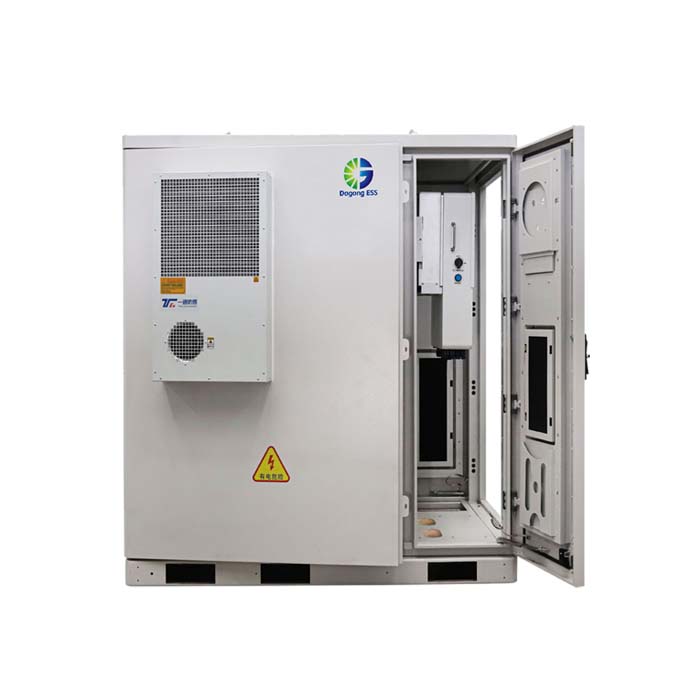

Dagong ESS 144kWh Air-cooled Energy Storage System cabinet is a high-performance energy storage system using LFP batteries. It provides a capacity of 144kWh and power options up to 50kW, with a built-in hybrid inverter supporting both solar (PV) and grid (AC) charging. Designed for industrial and commercial use, it features wide voltage and temperature ranges, IP54 protection, and industrial cooling, ensuring reliable power in various environments.
Cell type: Lithium Iron Phosphate Battery
Rated capacity @ BOL : 144kWh @ 25℃，0.5P
Rated power : 30/40/50kW
Voltage range : 280~408.8V
Working temperature range : -20~55℃
Protection registration : IP54
Cycle performance: >8000 Cycles @70%SOH
What is 144kWh air-cooled Energy Storage System?
The Dagong ESS 144kWh Air-cooled Energy Storage System cabinet is a high-performance solution designed for industrial and commercial applications. Manufactured by Dagong New Energy, it utilizes Lithium Iron Phosphate (LFP) batteries, offering reliable energy storage with capacities ranging from 144kWh at 25°C and a discharge rate of 0.5P.
Features of 144kWh air-cooled Energy Storage System
1. Performance and Flexibility
· Rated capacities: 144kWh.
· Rated power options: 30kW, 40kW, or 50kW.
· Operating voltage range: 280V to 408.8V.
· Wide temperature tolerance: -20°C to 55°C.
2. Cooling and Fire Safety
· Equipped with an industrial wall-mounted air conditioner for efficient cooling.
· Fire safety ensured with Perfluoroacetone fire extinguishing.
3. Durability
· IP54 protection rating (dust and water resistance).
· C3 anti-corrosion registration.
· Operating humidity range: 0~95% (non-condensing).
· Suitable for altitudes up to 3000 meters.
4. Compatibility and Installation
· Cabinet dimensions: 1600mm (L) x 1700mm (W) x 1000mm (H) (excluding the air conditioner).
· Supports Ethernet communication and three-phase four-wire + PE wiring.
· Voltage range: 360V to 440V; Grid frequency: 45Hz to 55Hz.
Applications of 144kWh air-cooled Energy Storage System
This ESS is ideal for various industrial and commercial scenarios, including:
· Peak shaving and load shifting.
· Backup power supply.
· Energy management for factories, warehouses, and office buildings.
· Renewable energy integration.
Price of 144kWh air-cooled Energy Storage System
The price of the 144kWh air-cooled Energy Storage System is based on EXW (Ex Works) terms and may vary depending on the supplier, quantity, and market conditions.You may need to request a quote from a reputable energy storage system supplier to get the most accurate pricing. Please note that the final costs may vary based on fluctuations in raw material prices and exchange rates.
If you are looking for 144kWh air-cooled Energy Storage System with hybrid inverter for solar & grid or want to know more about the technical information, please feel free to contact Dagong ESS.
| Property | Value |
|---|---|
| Product Type | DG144kWh-50kW-2h |
| Cell Type | Lithium Iron Phosphate Battery |
| Rated Capacity @ BOL | 144kWh @ 25℃，0.5P |
| Rated Power | 30/40/50kW |
| Voltage Range | 280~408.8V |
| Working Temperature Range | -20~55℃ |
| Weight | ≤2100kg |
| Cooling Method | Industrial wall mounted air conditioner |
| Fire Safety Configuration | Perfluoroacetone fire extinguishing |
| Protection Registration | IP54 |
| Anti-Corrosion Registration | C3 |
| Working Humidity Range | 0~95%(non-condensing) |
| Cabinet Size (L * W * H) | 1600*1700*1000mm (excluding air conditioner) |
| Maximum Working Altitude | 3000m |
| Communication Method | Ethernet |
| Voltage Range of Power Grid | 360~440V |
| Wiring Method | Three phase four wire+PE |
| Grid Frequency Range | 45~55Hz |
