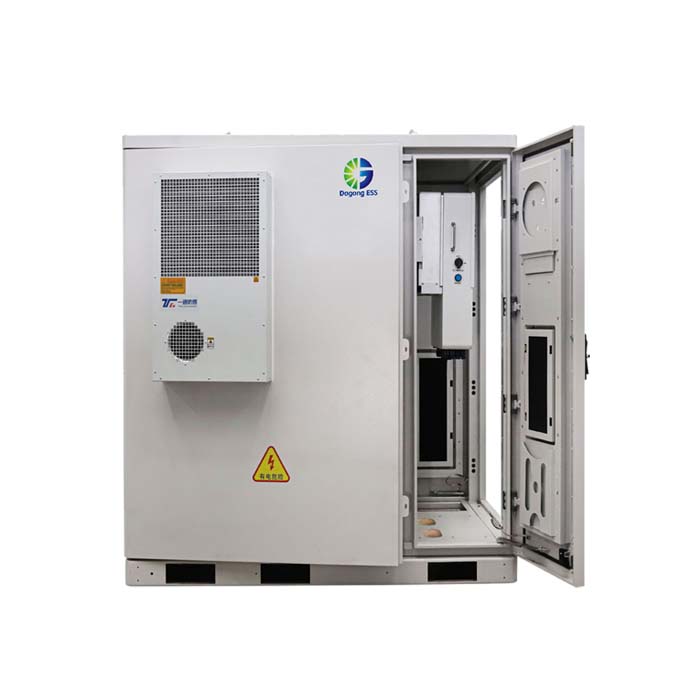

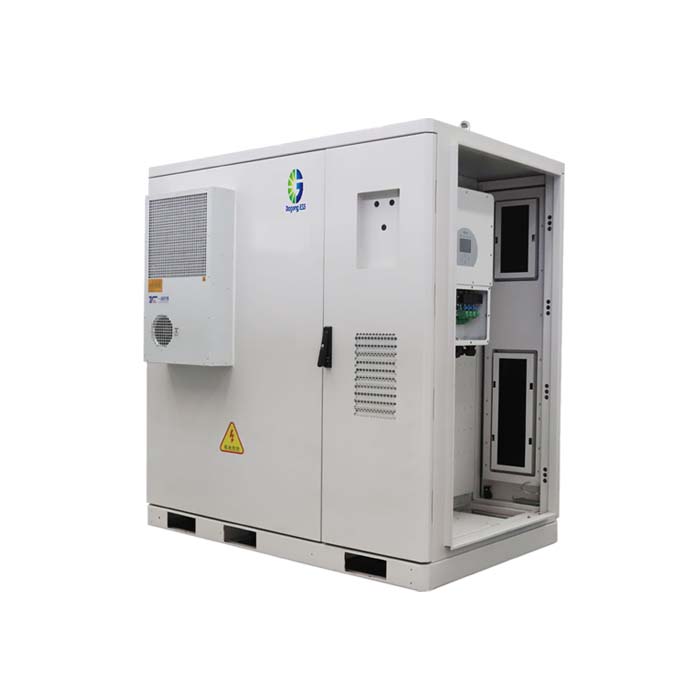

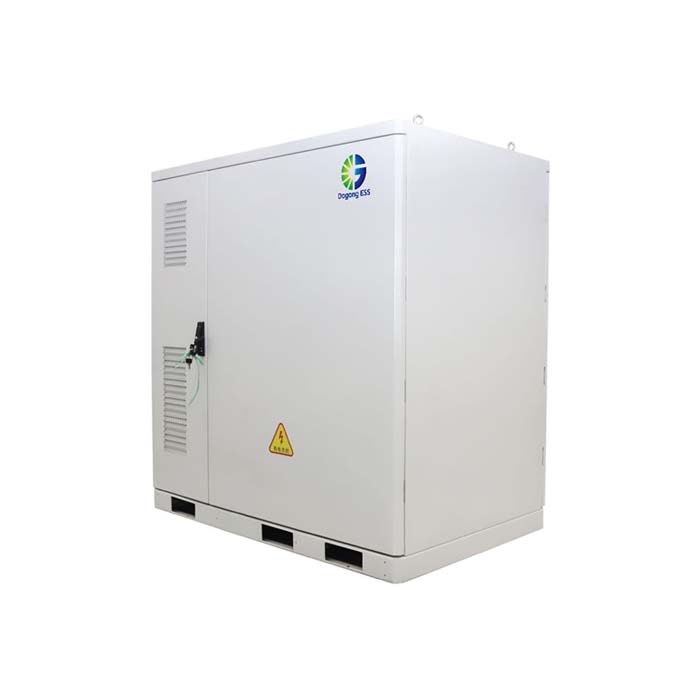

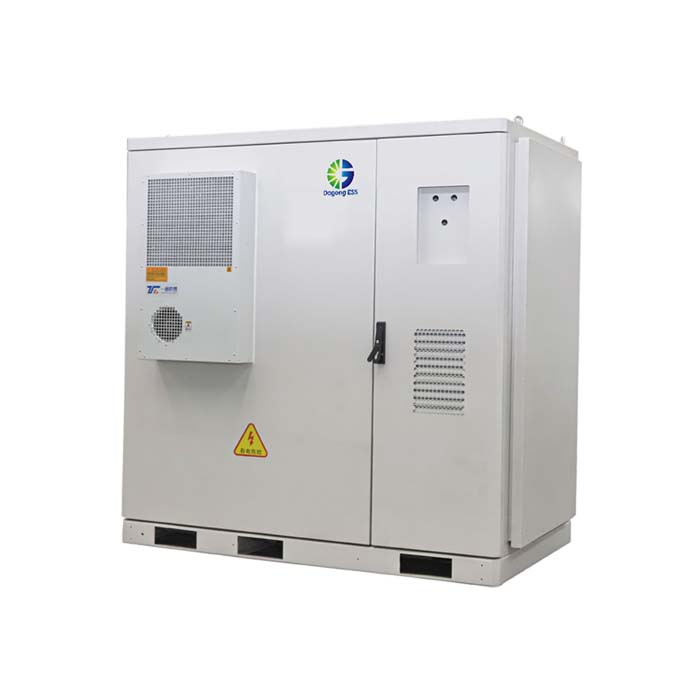

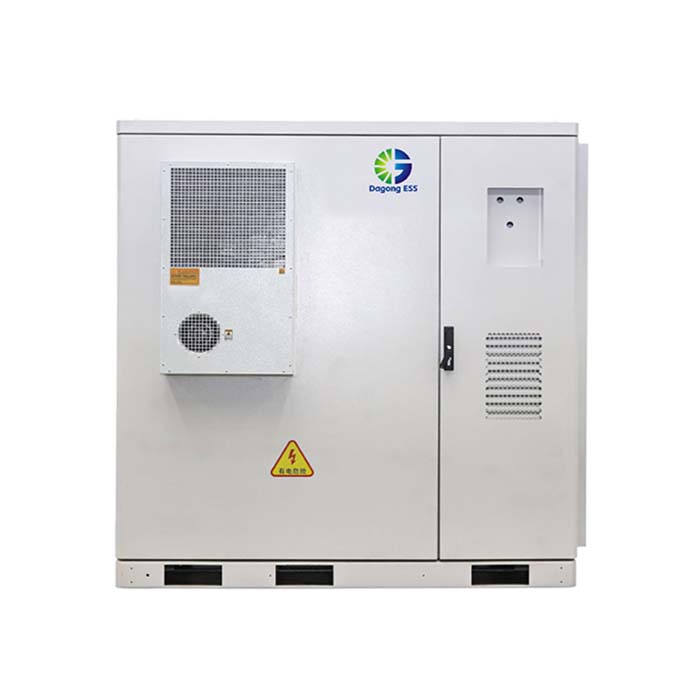

Dagong ESS 100kWh to 144kWh Air-cooled Energy Storage System cabinet is a high-performance energy storage system using LFP batteries. It offers capacities up to 144kWh and power options up to 50kW, with a built-in hybrid inverter supporting both solar (PV) and grid (AC) charging. Designed for industrial and commercial use, it features wide voltage and temperature ranges, IP54 protection, and industrial cooling, ensuring reliable power in various environments.
Cell type: Lithium Iron Phosphate Battery
Rated capacity @ BOL : 100kWh to 144kWh @ 25℃，0.5P
Rated power : 30/40/50kW
Voltage range : 280~408.8V
Working temperature range : -20~55℃
Protection registration : IP54
Cycle performance: >8000 Cycles @70%SOH
What is 100kWh to 144kWh air-cooled Energy Storage System?
The Dagong ESS 100kWh to 144kWh Air-cooled Energy Storage System cabinet is a high-performance solution designed for industrial and commercial applications. Manufactured by Dagong New Energy, it utilizes Lithium Iron Phosphate (LFP) batteries, offering reliable energy storage with capacities ranging from 100kWh to 144kWh at 25°C and a discharge rate of 0.5P.
Features of 100kWh to 144kWh air-cooled Energy Storage System
1. Performance and Flexibility
· Rated capacities: 100kWh to 144kWh.
· Rated power options: 30kW, 40kW, or 50kW.
· Operating voltage range: 280V to 408.8V.
· Wide temperature tolerance: -20°C to 55°C.
2. Cooling and Fire Safety
· Equipped with an industrial wall-mounted air conditioner for efficient cooling.
· Fire safety ensured with Perfluoroacetone fire extinguishing.
3. Durability
· IP54 protection rating (dust and water resistance).
· C3 anti-corrosion registration.
· Operating humidity range: 0~95% (non-condensing).
· Suitable for altitudes up to 3000 meters.
4. Compatibility and Installation
· Cabinet dimensions: 1600mm (L) x 1700mm (W) x 1000mm (H) (excluding the air conditioner).
· Supports Ethernet communication and three-phase four-wire + PE wiring.
· Voltage range: 360V to 440V; Grid frequency: 45Hz to 55Hz.
Applications of 100kWh to 144kWh air-cooled Energy Storage System
This ESS is ideal for various industrial and commercial scenarios, including:
· Peak shaving and load shifting.
· Backup power supply.
· Energy management for factories, warehouses, and office buildings.
· Renewable energy integration.
Price of 100kWh to 144kWh air-cooled Energy Storage System
The price of the 100kWh to 144kWh air-cooled Energy Storage System is based on EXW (Ex Works) terms and may vary depending on the supplier, quantity, and market conditions.You may need to request a quote from a reputable energy storage system supplier to get the most accurate pricing. Please note that the final costs may vary based on fluctuations in raw material prices and exchange rates.
If you are looking for 100kWh to 144kWh air-cooled Energy Storage System with hybrid inverter for solar & grid or want to know more about the technical information, please feel free to contact Dagong ESS.
| Property | Value |
|---|---|
| Product Type | DG100kWh-144kWh-50kW-2h |
| Cell Type | Lithium Iron Phosphate Battery |
| Rated Capacity @ BOL | 100kWh to 144kWh @ 25℃，0.5P |
| Rated Power | 30/40/50kW |
| Voltage Range | 280~408.8V |
| Working Temperature Range | -20~55℃ |
| Weight | ≤2100kg |
| Cooling Method | Industrial wall mounted air conditioner |
| Fire Safety Configuration | Perfluoroacetone fire extinguishing |
| Protection Registration | IP54 |
| Anti-Corrosion Registration | C3 |
| Working Humidity Range | 0~95%(non-condensing) |
| Cabinet Size (L * W * H) | 1600*1700*1000mm (excluding air conditioner) |
| Maximum Working Altitude | 3000m |
| Communication Method | Ethernet |
| Voltage Range of Power Grid | 360~440V |
| Wiring Method | Three phase four wire+PE |
| Grid Frequency Range | 45~55Hz |
The 5MWh Air-Cooled Container Energy Storage System is a reliable, high-performance solution for industrial and commercial applications. It features easy transport, installation, and maintenance, along with real-time monitoring and fault recording. The modular design and CTP technology enable flexible expansion. With robust safety features, over 8,000 cycles (70% SOH), and a 15+ year lifespan (one charge per day), it ensures long-term efficiency.
The 3.35MWh Liquid-Cooled Energy Storage Container is a high-capacity solution for efficient power management, using safe and durable Lithium Iron Phosphate (LiFePO4) cells. With a rated capacity of 3.35MWh and power of 1.5MW, it is ideal for large-scale energy storage. Operating at 1040~1497V, it features a liquid-cooling system for optimal temperature control and performance.
The 372kWh Liquid-Cooled Energy Storage System is a reliable, high-performance solution for industrial and commercial applications. It features easy transport, installation, and maintenance, along with real-time monitoring and fault recording. The modular design and CTP technology enable flexible expansion. With robust safety features, over 8,000 cycles (70% SOH), and a 15+ year lifespan (one charge per day), it ensures long-term efficiency.
The 215kWh Liquid-Cooled Energy Storage System offers a highly efficient, reliable, and easy-to-maintain solution for industrial and commercial use. With modular design, CTP technology, and flexible expansion, it ensures long-term performance with over 8,000 cycles (70% SOH) and a lifespan of 15+ years. It features real-time monitoring, fault recording, and robust safety protections.
The 215kWh to 241kWh Air-Cooled Energy Storage System is a reliable, high-performance energy storage solution for industrial and commercial applications. Featuring a modular design with CTP technology, it offers easy transport, installation, and maintenance. The system supports parallel expansion, real-time monitoring, and fault recording. With over 8,000 cycles (70% SOH) and a lifespan of over 15 years, it ensures long-term reliability. Certified with CE, UN38.3, MSDS, and 3C for safety and compliance.
The 100kWh to 144kWh Air-cooled Energy Storage System is a high-performance energy storage system using LFP batteries, offering capacities from 100kWh to 144kWh and power options up to 50kW. It features a built-in hybrid inverter, supporting both solar power (PV) and grid (AC) charging modes. With wide voltage and temperature ranges, IP54 protection, and industrial cooling, it is ideal for industrial and commercial applications, ensuring reliable power supply in diverse environments.
