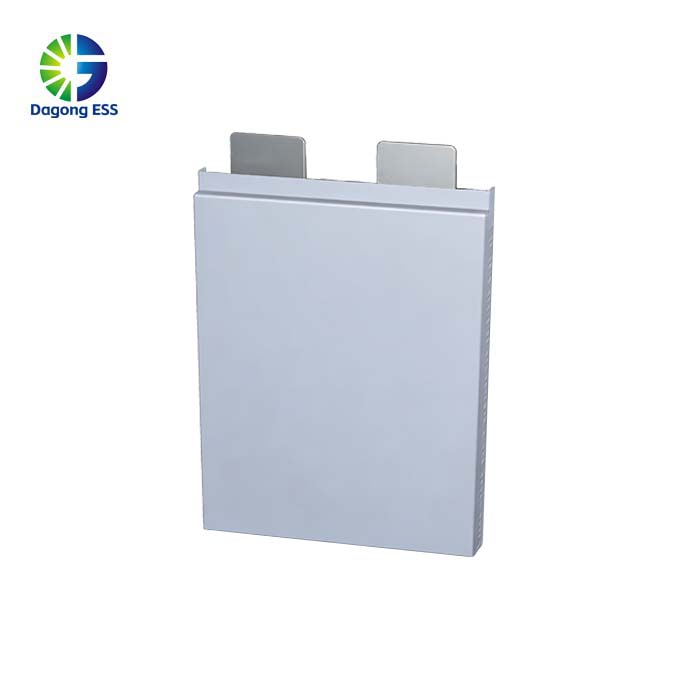

The NMC Pouch Cell for Energy Storage delivers high energy density and strong power performance with a nominal voltage of 3.6–3.7V. It supports high-rate discharge up to 15C continuous and 25C pulse, ensuring excellent performance in demanding applications. With fast charging capability, reliable cycle life, and a wide operating temperature range of -43°C to 55°C, it provides efficient, lightweight, and stable energy solutions for advanced energy storage systems.
Battery Type: LiFePO₄ (LFP) Pouch Cell
Nominal Voltage: 3.2V
Capacity Range: 3Ah – 40Ah
Max Charge Rate: Up to 15C
Max Discharge Rate: Up to 70C (pulse)
Cycle Life: 3000+ cycles (depending on operating conditions)
Operating Temperature: -43°C to 55°C
Cell Structure: Flexible laminated aluminum pouch
The NMC Pouch Cell for Energy Storage is a high-energy-density lithium-ion battery based on Nickel Manganese Cobalt chemistry. It offers a nominal voltage of 3.6–3.7V and a capacity range from 8Ah to 56Ah, making it suitable for applications requiring high energy output and lightweight design. With excellent energy density and high-rate performance, it is widely used in consumer electronics, UAVs, and portable energy systems.
Features of the NMC Pouch Cell
Nominal voltage: 3.6–3.7V
Capacity range: 8Ah – 56Ah
Energy density: 155 – 300 Wh/kg (model dependent)
Continuous charge/discharge rate: up to 1C–5C (model dependent)
Pulse discharge rate: up to 25C
Cycle life: 2000 – 4000 cycles (depending on usage conditions)
Operating temperature: -43°C to 55°C
Lightweight pouch structure for high energy-to-weight ratio
High energy density NMC chemistry for superior performance
Supports advanced BMS integration
Applications of the NMC Pouch Cell
The NMC pouch cell is widely used in 3C electronic products, electric tools, UAVs/drones, and portable energy storage systems. It is especially suitable for applications requiring high energy density, lightweight structure, and strong discharge capability.
Price of the 280Ah Prismatic lithium Ion Battery
The price is based on EXW (Ex Works) terms and varies depending on specifications such as capacity, energy density, discharge rate, and order quantity. Fluctuations in raw material costs (nickel, cobalt, lithium) may also affect pricing. For accurate quotations, please contact a reliable supplier.
Manufacturer of the NMC Pouch Cell
The NMC pouch cell is manufactured by Dagong ESS, a professional lithium battery and energy storage solution provider. The company delivers high-quality battery cells, customized engineering support, and stable supply capability for global customers.
If you are interested in NMC Pouch Cell for Energy Storage and need technical specifications, please contact Dagong ESS.
| Type | Capacity (Ah) | Nominal Voltage (V) | Energy Density (Wh/kg) | Max Continuous Rate | Max Pulse Rate | Operating Temperature |
|---|---|---|---|---|---|---|
| High Rate | 20 | 3.7 | 214 | 2C / 5C | 3C / 10C | -43°C ~ 55°C |
| High Rate | 28 | 3.7 | 224 | 2C / 5C | 3C / 10C | -43°C ~ 55°C |
| High Rate | 56 | 3.7 | 224 | 2C / 3C | 3C / 10C | -43°C ~ 55°C |
| Fast Charging | 30 | 3.7 | 187 | 5C / 10C | 6C / 20C | -43°C ~ 55°C |
| High Power | 8 | 3.7 | 155 | 5C / 15C | 10C / 25C | -43°C ~ 55°C |
| High Energy Density | 35 | 3.61 | 300 | 1C / 3C | 3C / 5C | -43°C ~ 55°C |
| Semi-solid State | 30 | 3.7 | 241 | 1C / 2C | 3C / 5C | -43°C ~ 55°C |
| Semi-solid State | 35 | 3.7 | 244 | 1C / 2C | 3C / 5C | -43°C ~ 55°C |
| Semi-solid State | 30 | 3.7 | 272 | 1C / 2C | 3C / 5C | -43°C ~ 55°C |
The 314Ah LiFePO4 battery offers reliable, efficient energy storage. With a nominal voltage of 3.2V, it supports a 1.0C discharge rate and features low internal resistance (<0.25mΩ). The battery charges at 1C (cut-off voltage 3.65V) and discharges at 1C (cut-off at 2.5V). It supports fast charging, reaching full capacity in 2 hours (0.5C) or 1 hour (1C). With a cycle life of over 6000 cycles at 80% SOH, it ensures long-term durability. The battery operates within a temperature range of -30°C to 55°C for discharge and 0°C to 55°C for charging.
The 280Ah LiFePO4 battery offers reliable, efficient energy storage with a nominal voltage of 3.2V and a 1.0C discharge rate. Its low internal resistance (<0.25mΩ) ensures optimal performance. It charges at 1C (cut-off at 3.65V) and discharges at 1C (cut-off at 2.5V). Fast charging capabilities allow it to reach full capacity in 2 hours (0.5C) or 1 hour (1C). With over 6000 cycles at 70% SOH, it guarantees long-term reliability. It operates within a wide temperature range: -30°C to 60°C for discharge and 0°C to 60°C for charging.
The 100Ah LiFePO4 battery offers reliable, efficient energy storage. With a nominal voltage of 3.2V, it supports a 1.0C discharge rate and features low internal resistance (<0.25mΩ). The battery charges at 1C (cut-off voltage 3.65V) and discharges at 1C (cut-off at 2.5V). It supports fast charging, reaching full capacity in 2 hours (0.5C) or 1 hour (1C). With a cycle life of over 6000 cycles at 70% SOH, it ensures long-term durability. The battery operates within a temperature range of -20°C to 55°C for discharge and 0°C to 55°C for charging.
The NMC Pouch Cell for Energy Storage is a high-energy-density lithium-ion battery based on Nickel Manganese Cobalt (NMC) chemistry, designed for applications requiring strong power output and lightweight structure. Compared with traditional battery formats, pouch cells offer higher energy density, better space utilization, and flexible design, making them ideal for compact and high-performance energy systems. With excellent high-rate discharge capability, fast charging performance, and stable cycle life, this battery is suitable for a wide range of applications including portable energy storage systems, UAVs/drones, electric tools, and other power-demanding devices.
The LFP Pouch Cell for Energy Storage is a high-performance lithium iron phosphate (LiFePO₄) battery designed for modern energy storage systems. Compared with traditional prismatic cells, pouch cells offer lighter weight, higher energy density, and flexible form factor, making them ideal for compact and modular ESS designs. With excellent cycle life, fast charging capability, and wide temperature adaptability, this battery is suitable for a variety of applications including portable energy storage, intelligent devices, and light electric vehicles.
